Single Suction Centrifugal Vertical Inline Pump

Short Description:

Purity PGL vertical inline pump offers high efficiency, low noise, and a compact design, ideal for various applications. Reliable, durable, and energy-saving—your best choice!


Product Detail

Product Tags

Product Introduction

Purity PGL vertical inline pump features an innovative integrated design, with the pump body and end cover connected by a cast-in structure that improves connection strength and concentricity. This design enhancement not only boosts mechanical efficiency but also extends the overall lifespan of the inline water pump.
PGL vertical inline pump is equipped with a national standard energy-efficient motor, designed to deliver optimal performance while maintaining low operating costs. The motor’s stator is made from high-performance non-oriented cold-rolled steel strips, and the use of pure copper coils ensures minimal temperature rise. This combination results in a significant increase in motor efficiency, further enhancing the inline booster pump’s performance.
To reduce operational noise and improve system comfort, PGL vertical inline pump incorporates an upgraded impeller structure, which helps to lower noise levels by up to 10%. Additionally, the improved fan blade design facilitates faster motor heat dissipation, ensuring the inline water booster pump operates efficiently while reducing sound levels during operation.
PGL vertical inline pump is compact and space-saving, making it ideal for installations where space is limited. Its modular design allows for easy maintenance and efficient servicing, reducing downtime. PGL inline water pump is also designed with new features such as dustproof and rainproof capabilities, ensuring reliable performance in both indoor and outdoor applications, even in harsh environmental conditions.Purity inline water pump hopes to be your first choice, welcome to inquiry!

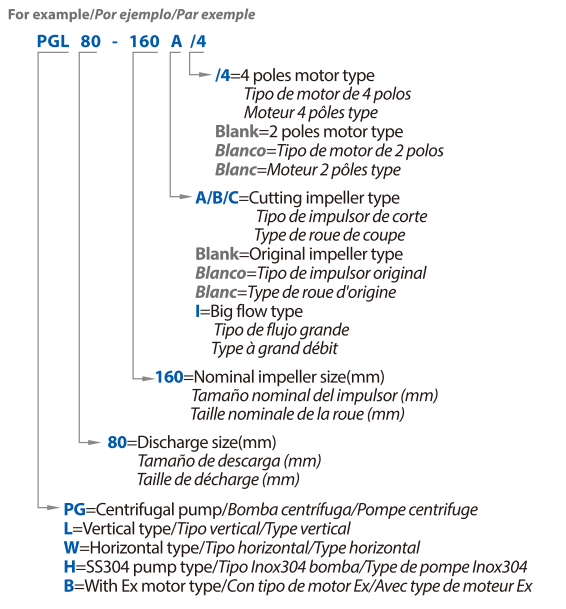

Model Description

型号说明

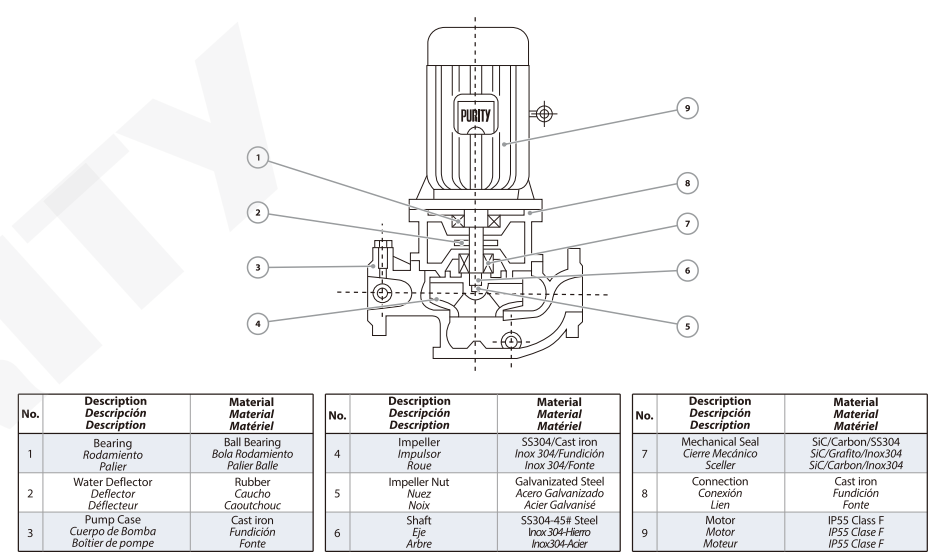

Product Components

立式组件

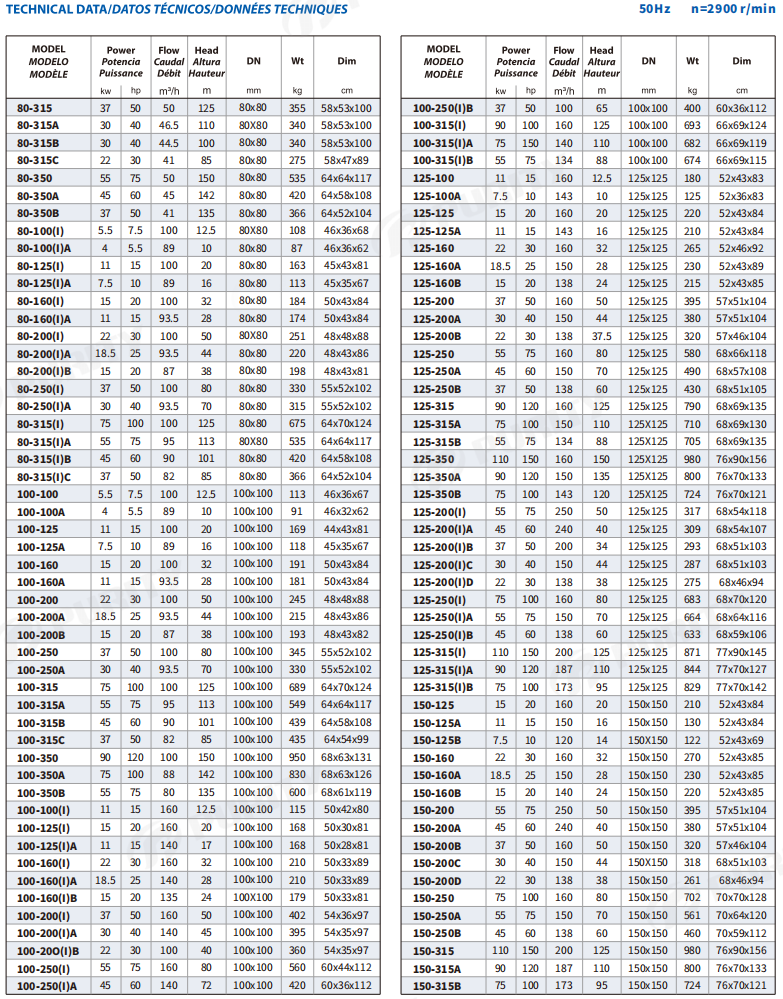

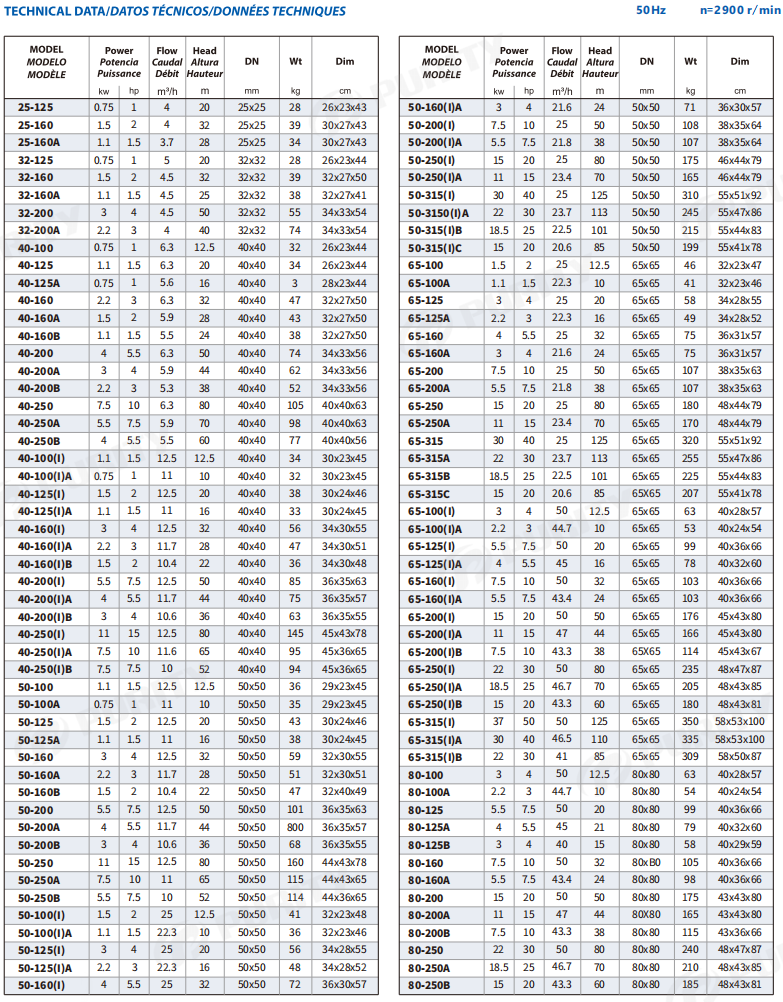

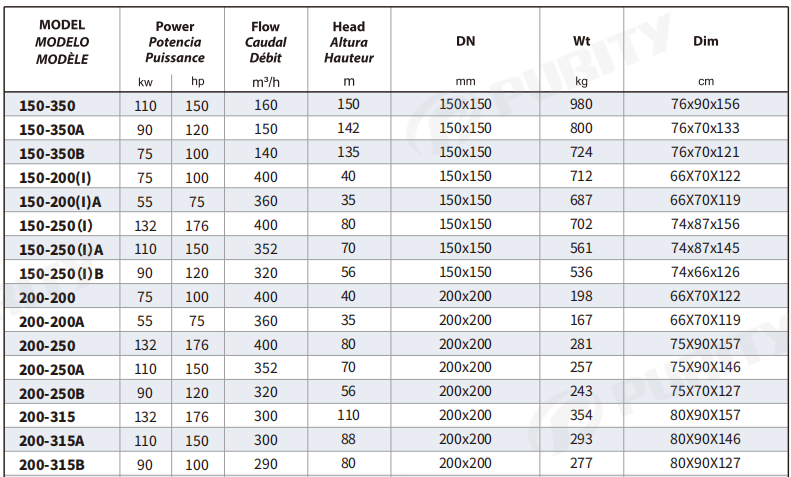

Product Parameters

参数1

参数2

参数3
